Application: Rechargeable battery packs
Lithium cell and battery packs
Product Features: Low profile, Solid state
Operation Current: 0.7A~3.4 A
Maximum Voltage: 24V
Temperature Range: -40＜C to 85＜C
Agency Recognition: UL(E211981)
C-UL(E211981)
TÜV (R3-50004084)

　
　
　
Part
Number		 Hold
Current		 Trip
Current		 Rated
Voltage		 Maximum
Current
　		 Typical
Power
　		 Resistance Tolerance
RMIN RMAX R1MAX
IH, A IT, A VMAX,Vdc IMAX, A Pd, W ohms ohms ohms
FLT070 0.7 1.5 24 100 1.1 0.100 0.200 0.340
FLT070S 0.7 1.5 24 100 1.1 0.100 0.200 0.340
FLT100 1.00 2.5 24 100 1.5 0.070 0.130 0.260
FLT100S 1.00 2.5 24 100 1.5 0.070 0.130 0.260
FLT180 1.8 3.8 24 100 2.0 0.040 0.068 0.120
FLT180S 1.8 3.8 24 100 2.0 0.040 0.068 0.120
FLT190 1.9 4.2 24 100 1.9 0.030 0.057 0.100
FLT260 2.6 5.2 24 100 2.3 0.025 0.042 0.076
FLT300 3.0 6.3 24 100 2.0 0.015 0.031 0.055
FLT310 3.1 6.0 24 100 2.5 0.018 0.030 0.055
FLT340 3.4 6.8 24 100 2.7 0.016 0.027 0.050
　
IH=Hold current-maximum current at which the device will not trip at 23＜C still air.
IT=Trip current-minimum current at which the device will always trip at 23＜C still air.
V MAX=Maximum voltage device can withstand without damage at its rated current.
I MAX= Maximum fault current device can withstand without damage at rated voltage (V max).
Pd=Typical power dissipated from device when in the tripped state in 23＜C still air environment.
RMIN=Minimum device resistance at 23＜C.
R1MAX=Maximum device resistance at 23＜C, 1 hour after tripping .
Lead material:0.13mm.nominal thickness ,quarter-hard nickel.
Insulating material: Polyester tape.

　
　
Part
Number
 Fig
A
 B C
　
D
　
F
Min
 Max
Min
 Max
Min
 Max
Min
 Max
Min
 Max
FLT070 1 19.9 22.1 4.9 5.2 0.7 1.2 5.5 7.5 3.9 4.1
FLT070S 2 19.9 22.1 4.9 5.2 0.7 1.2 5.5 7.5 3.9 4.1
FLT100 1 20.9 23.1 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT100S 2 20.9 23.1 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT180 1 24.0 26.0 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT180S 2 24.0 26.0 4.9 5.2 0.6 1.0 4.1 5.5 3.9 4.1
FLT190 1 21.3 23.4 10.2 11 0.5 1.1 5.0 7.6 4.8 5.4
FLT260 1 24.0 26.0 10.8 11.9 0.6 1.0 5.0 7.0 5.9 6.1
FLT300 1 28.4 31.8 13 13.5 0.5 1.1 6.3 8.9 6.0 6.6
FLT310 1 24.0 26.0 14.8 15.9 0.6 1.0 5.0 7.0 5.9 6.1
FLT340 1 24.0 26.0 14.8 15.9 0.6 1.0 4.0 5.0 5.9 6.1
　
　

　
　
　

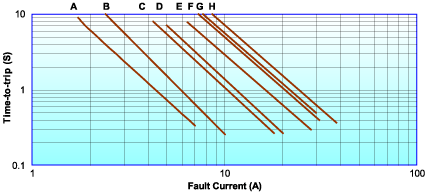

A=FLT070/FLT070S
B=FLT100/FLT100S
C=FLT180/FLT180S
D=FLT190
E=FLT260
F=FLT300
G=FLT310
H=FLT340
　

　
　

　
　
P/N
Pcs /Bag
FLT070
2K
FLT070S
2K
FLT100
2K
FLT100S
2K
FLT180 2K
FLT180S
2K
　
P/N
Pcs /Bag
FLT190
2K
FLT260
2K
FLT300
2K
FLT310 2K
FLT340
2K


　
　
Warning:
  1. Operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and/or flame.
  2. PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated.
  3. Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance.

All the specifications are subject to change without previous notice.
